airMAX Technology

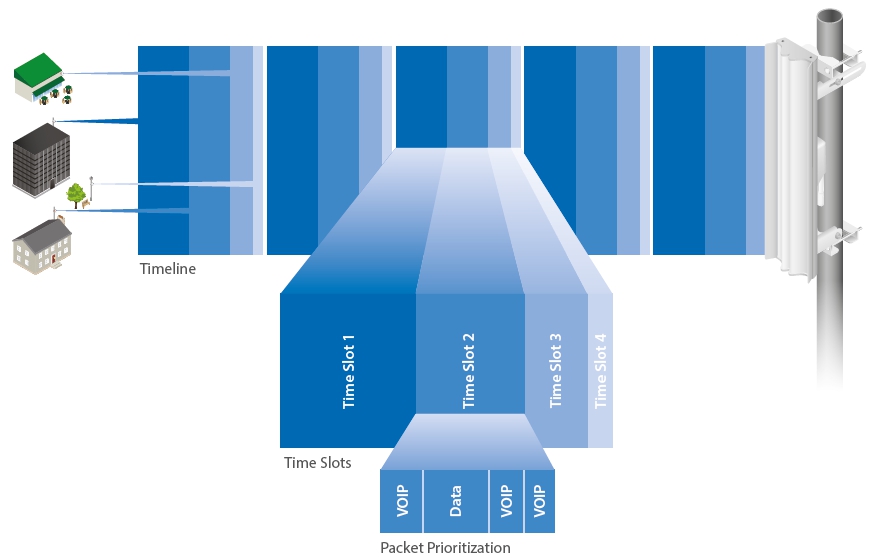

Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.

This “time slot” method eliminates hidden node collisions and maximizes airtime efficiency. It provides many magnitudes of performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.

Intelligent QoS Priority is given to voice/video for seamless streaming.

Scalability High capacity and scalability.

Long Distance Capable of high-speed, carrier-class links.

Up to 100 airMAX ac stations can be connected to an airMAX ac Sector; four airMAX ac stations are shown to illustrate the general concept.

Shop Now

airMAX ac Technology

Superior Performance
The next-generation airMAX ac technology boosts the advantages of our proprietary TDMA protocol.

Ubiquiti’s airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

airMAX ac Network Scalability

Throughput Breakthrough


airMAX ac supports high data rates, which require dense modulation: 256 QAM – a significant increase from 64 QAM, which is used in airMAX. With their use of proprietary airMAX ac technology, airMAX ac products supports up to 500+ Mbps (maximum 80 MHz channel width) real TCP/IP throughput – up to triple the throughput of standard airMAX products.



Shop Now

airPRISM Technology

To enhance airMAX ac performance, Ubiquiti Networks introduces our patented airPrism technology, which is featured on the Rocket Prism 5AC Gen 2, model RP‑5AC‑Gen2.

Improves SNR
High data rates require a high Signal‑to‑Noise Ratio (SNR), which is challenging to achieve, especially in noisy, high‑density areas.

Integrated into Ubiquiti’s custom silicon, airPrism technology creates a high SNR by isolating signals within the operating channel and rejecting interference using specialized circuitry, the High-Selectivity Receiver (HSR).

Removes Interference
Depending on the product model and operating mode, available channel widths may include 10, 20, 30, 40, 50, 60, and/or 80 MHz.

Theoretically APs operate on different channels; however, because of the wider channel bandwidths, there can be overlap in spectrum usage.

airPrism technology removes up to an additional 30+ dB of adjacent channel interference through the active filtering design, so an airMAX ac AP with airPrism technology can provide significantly greater performance than a typical AP.

Facilitates AP Co-Location
Co‑location is vital in many scenarios. For example, a WISP may have limited tower space, so it must co‑locate all APs within that allotted footprint. Shielding and other means can lessen interference but may be impractical.

By deploying airMAX ac APs with airPrism technology, you can co‑locate APs and enhance the overall performance of your wireless network.

Active Radio Frequency Filtering

Improved Latency and Noise Immunity
