TRB Gateway Board Series

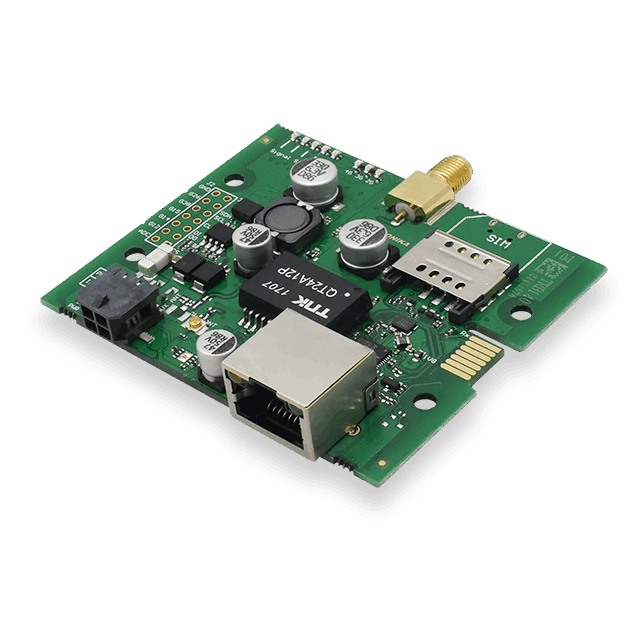

The industrial LTE Cat 1 gateway board TRB140 is equipped with an Ethernet interface, digital inputs/outputs and a micro-USB port. TRB140's compact design makes this gateway perfect for applications, in which a sole device must be granted reliable Internet connectivity. TRB140 is engineered to be used in industrial applications, therefore it has a wide range of software features such as SMS control, firewall, OpenVPN, IPsec, RMS and FOTA support.

• Mobile: LTE(Cat4)/3G/2G
• SIM slot: Mini SIM (2FF)
• Antenna connector: 1x SMA for LTE
• Ethernet: 1x 10/100/1000 Mbps
• Input/Output: 2x digital Input/Output (configurable)
• CPU: ARM Cortex-A7 1.2 GHz CPU
• RAM: 128 MB (50 Mb available for user space)
• Flash: 512 MB (70 Mb available for user space)
• Input voltage range: 9 - 30 V DC
• Power connector: 4-pin industrial DC power socket
• Configuration interface: Virtual NIC via Micro-USB connector
• LED Indicators: Power, signal, network and data status LEDs
• Operating System: Linux OS with Yocto SDK (offering high software customisation)
• Network: NAT, Static/Dynamic routing, Firewall (port forward, traffic rules, custom rules), OpenVPN, DDNS (>25 service providers supported)
• RS485 related services: Modbus, Serial over IP, NTRIP
• Remote management: RMS Support, FOTA support, SSH, CLI, SMS Utilities (status/configuration)
• Status watchdogs: Ping reboot, periodic reboot
• Additional features: Internet connectivity over USB virtual network interface

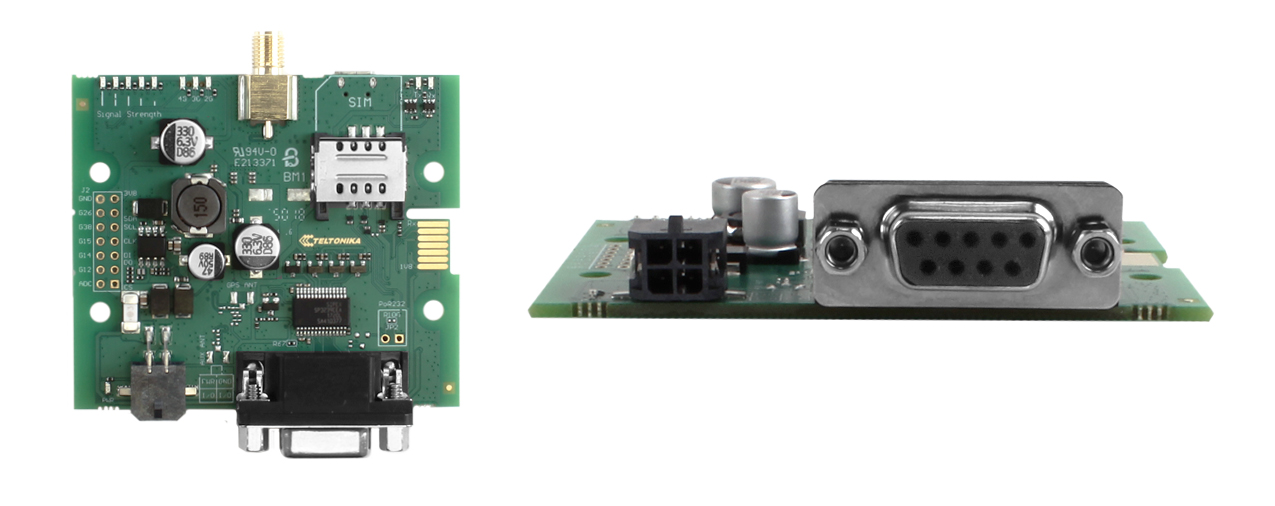

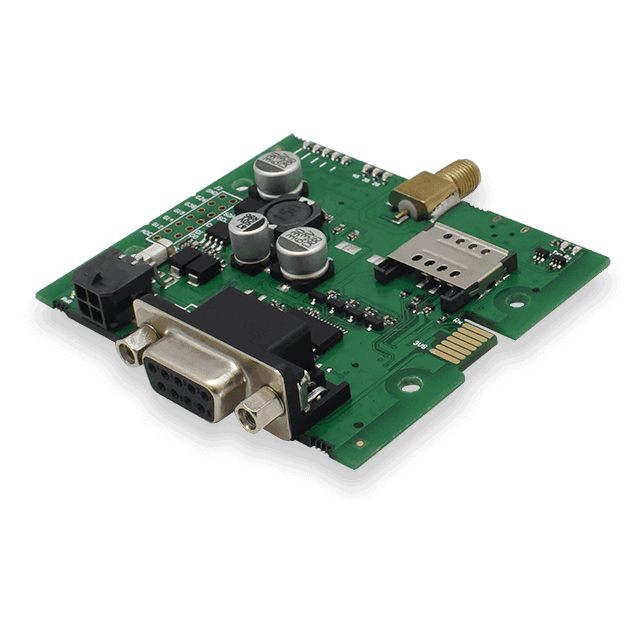

TRB family devices are designed to be small, lightweight and energy efficient - allowing you to do IoT projects with ease. TRB142 comes with the widely used RS232 port for remote device management. It contains a high-performance ARM Cortex-A7 1.2 GHz processor and 128 MB RAM. It is equipped with mission-critical LTE capabilities and a Linux environment offering a high degree of customization.

• LTE: LTE CAT1/CAT4
• UMTS/DC-HSPA+: DC-HSDPA up to 42 Mbps (DL), HSUPA up tp 5.76 Mbps (UL)
• GSM/GPRS/EDGE: EDGE up to 236.8 kbps DL, 236.8 kbps UL
• RS232: DB9 socket, 5-pin configuration with flow control
• Input/output: 1x digital input, 1x digital output
• ARM Cortex-A7 1.2 GHz CPU
• 128 MB RAM (50 MB available for users)
• 512 MB Flash (70 MB available for users)
• 4-pin industrial DC power socket
• SIM slot (2FF)
• 1x SMA for LTE
• Micro-USB connector
• Reset button
• Power, signal, network and data status LEDs
• Security: Firewall: pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

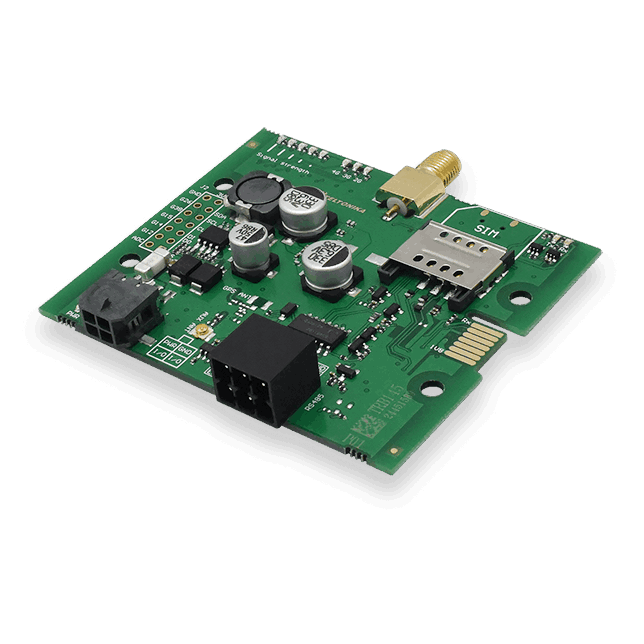

The industrial LTE Cat 1 gateway board TRB145 is equipped with an RS485 interface, digital inputs/outputs and a micro-USB port. TRB145's compact design makes this gateway perfect for applications, in which a sole device must be remotely controlled over an RS485 interface. TRB145 is engineered to be used in industrial applications, therefore it has a wide range of software features such as SMS control, firewall, OpenVPN, IPsec, RMS and FOTA support.

• Mobile: LTE(Cat1)/3G/2G
• SIM slot: Mini SIM (2FF)
• Antenna connector: 1x SMA for LTE
• RS485: Full Duplex (4 wires) and Half Duplex (2 wires), baud rate 300-115200
• Input/Output: 2x Digital Input/Output (configurable)
• CPU: ARM Cortex-A7 1.2 GHz CPU
• RAM: 128 MB (50 Mb available for user space)
• Flash: 512 MB (70 Mb available for user space)
• Input voltage range: 9 - 30 VDC
• Power connector: 4-pin industrial DC power socket
• Optional power source: Possibility to power device over 6-pin RS485 connector's spare terminals
• Configuration interface: Virtual NIC via Micro-USB connector
• LED Indicators: Power, signal, network and data status LEDs
• Operating System: Linux OS with Yocto SDK (offering high software customisation)
• Network: NAT, Static/Dynamic routing, Firewall (port forward, traffic rules, custom rules), OpenVPN, DDNS (>25 service providers supported)
• RS485 related services: Modbus, Serial over IP, NTRIP
• Remote management: RMS Support, FOTA support, SSH, CLI, SMS Utilities (status/configuration)
• Status watchdogs: Ping reboot, periodic reboot
• Additional features: Internet connectivity over USB virtual network interface
