The rack configurator: the fastest way to a 19″ APU board solution

Rate post
(5/4.8)

The fastest way to a 19 inch APU board solution: the rack configurator

The VARIA rack configurator allows you to customize rack bundles according to your wishes. From choosing different board variants, whether single- or dual-board operation, to selecting memory and power supply.
In the configurator, the positioning can be selected individually. Depending on requirements, only one board can be used, or different variants on both sides. The case can also be ordered without further hardware.

Rack-Konfigurator

The VARIA Store's rack configurator offers the easiest and fastest way to select all options for the respective system board.

Your options at a glance (as of July 2019):

  • Front panel for single- or dual-board operation
  • Board type matching the panel selection
  • Alternative pull handles
  • Hard drive options (2.5")
  • Storage options matching the board selection
  • Power supply
  • Redundancy module
  • Individual front panel print
  • Assembly service
Show prices and availability

Your options in detail

Rack-Konfigurator

Delivered pre-assembled - assembly service

Upon request, the assembly of the bundle can also be selected in the configurator. All components will be installed and checked before shipping.

Rack-Konfigurator

Compatible board versions

The configurator is available for the following boards:

- APU1, APU2 and APU3 series
- APU4 series
The boards are supplied by the manufacturer PC Engines.

Rack Accessories

Folding handles for short cabinets

As an alternative to the DualRack's standard handles, the folding pull handles can also be selected via the configurator. The finger handle with SNAP technology can be folded to the side and thus uses less space. It is attached by simply clicking it into the provided mounting hole.

Rack Accessories

Internal power supply

In contrast to the factory-mount power connector at the board (2.5 mm jack), Mean Well branded industrial PSUs are used for the internal power supply. These PSUs provide the necessary stability and longevity of the board components in continuous operation.

Rack Accessories

Redundancy module for more reliability

In addition to the internal power supply, the VARIA redundancy module ensures additional fail-safety of sensitive network systems in dual-board operations (e.g. in backup systems).

Rack Accessories

Your individual high-quality print

The high-quality front panel can be printed with your design according to your individual specifications. The high resolution and outstanding sharpness result in an impressive print. For the design of the print, we will contact you after your order has been placed. We are happy to assist you in preparing the print data for the final layout.

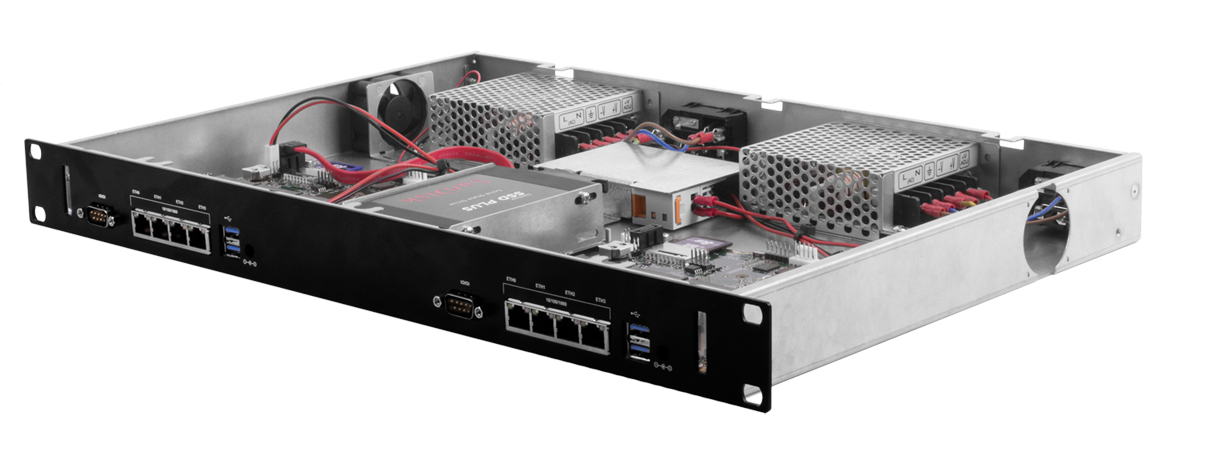

About the 19" DualRack enclosure

The material and high quality of the enclosure have remained unchanged. Only high-quality galvanized steel is used, which provides the necessary stability and longevity. The black front panel is powder-coated.

Further information on the high-quality enclosures of the DualRack configurator can be found here:

Embedded Box, DualRack System and Bundles
